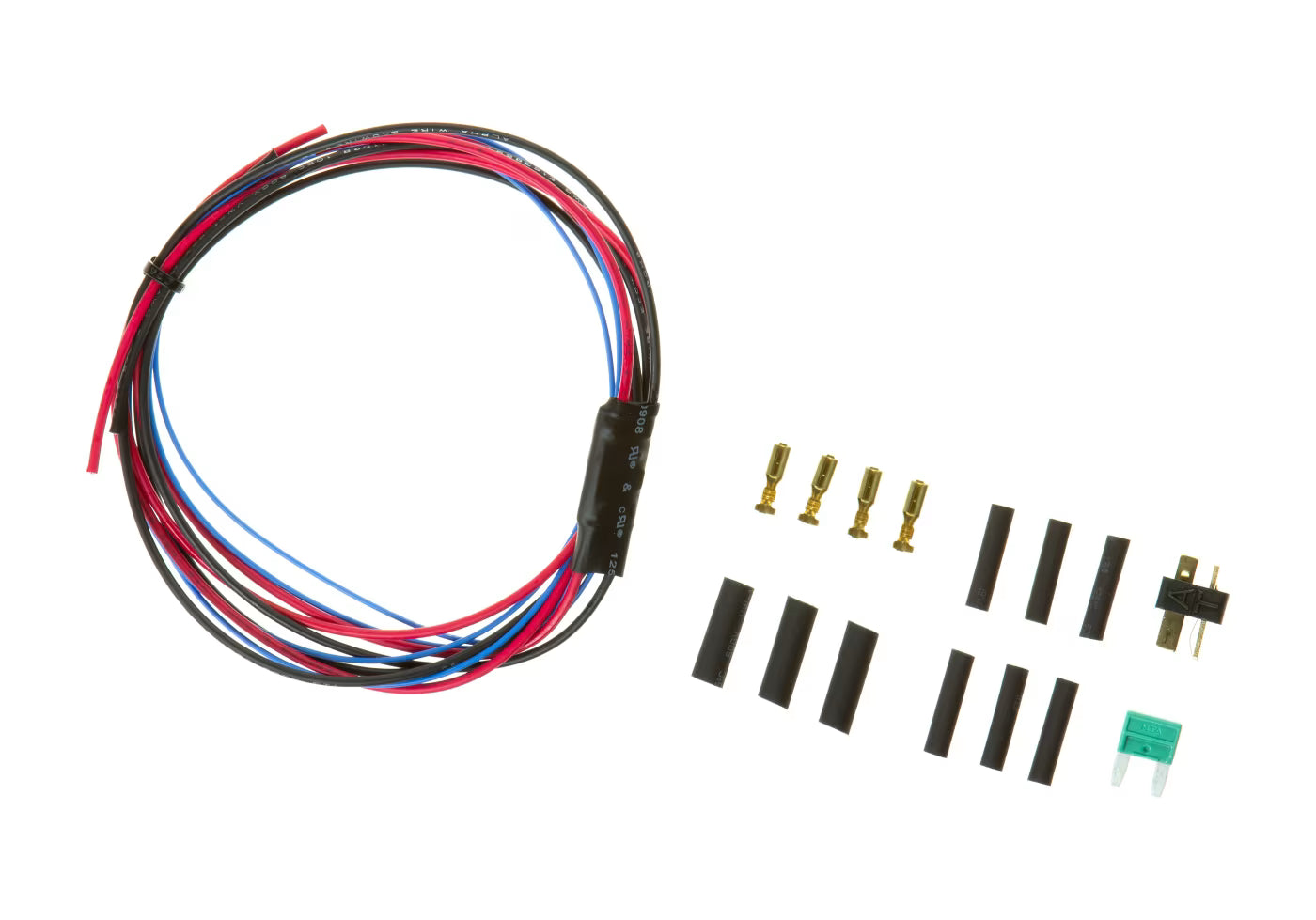

JEFTRON Mosfet II with Wiring

Precisely and professionally made drop-in MOSFET system designed for Airsoft Electric Guns.
This system increases the AEG's rate of fire and limits unnecessary battery usage.

In automatic-fire mode, the piston stops in a random position due to the gearbox design.

For proper operation, it is necessary to have a functional gearbox cut-off lever, selector plate, reverse latch, trigger, and trigger block, as it has the standard gearbox.

Device features:

• Pre-soldered wires allow for faster and easier installation into the V2-type gearbox. Wires are provided with the additional length for user adaptation.
• Four high-quality AWG16 1,5mm power wires and two AWG22 0.34qmm signal wires with protective coating insulation sleeve.
• Mainboard covered with conformal coating for water resistance.
• Designed for springs up to M210 (equivalent for current 150A single-shot fire or 50A burst fire for max. 30s).
• Ideal for popular batteries up to 17V (Ni-xx 8.4 - 12V, Li-Po 7.4 - 14.8V).
• No current consumption in the idle mode and no sparking on the switch contacts.
• Overall dimensions of 25x12x7mm.
